Plane Waves and Propagation Constant - Visualisation Tool

This is a simple represenation of a few cycles of a plane wave with a variable propagation constant. It shows:

  • how a travelling wave is composed of individual elements of wave in space with a phase difference between them
  • the dependence between dielectric constant and permeability and both wavelength and speed
  • the effect of conductivity (ie attenuation) and also its effect on the E-H field phase difference (45 degrees max in a perfect conductor)

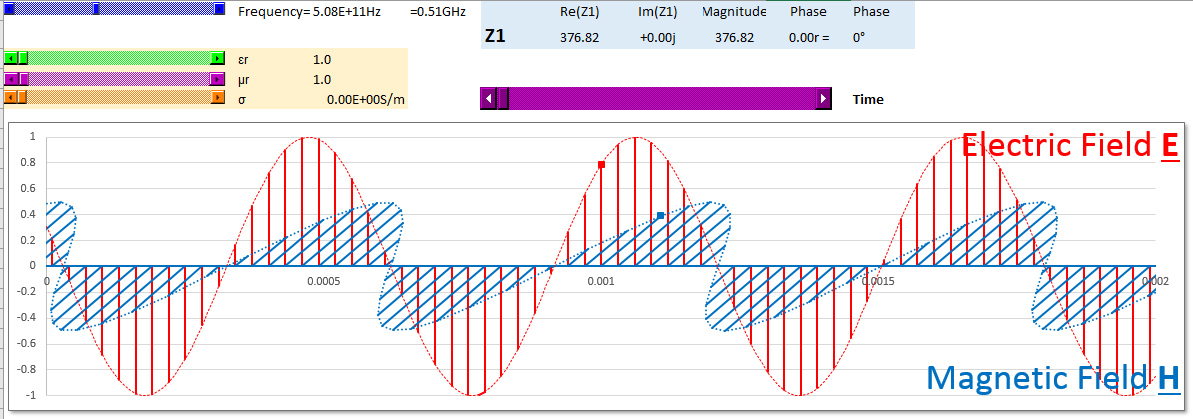

Planewave in cartoon form simulation screenshot
Planewave in cartoon form simulation screenshot
AttachmentSize
File Planewave in cartoon form875.73 KB
